Sorting through the mountain of new HVLP and LVLP guns arriving lately felt like a marathon. I consistently ran high-solids urethane and metallic bases through every contender under real shop humidity conditions, meticulously checking atomization patterns and transfer efficiency. This rigorous evaluation showed me exactly which tool deserves the title of best air paint sprayer for automotive work today, especially when comparing value against professional results.
My Comprehensive Review of the Best Air Paint Sprayer for Automotive 2025
I approached this review not just as a technical analysis, but as a hands-on story of finding the right tool for the right job. From laying down flawless clear coats on small panels to tackling heavy primer on full bumpers, each sprayer told a different tale about efficiency and finish quality.
1. ENDOZER Professional HVLP Spray Gun Set Gravity Feed with Gauge
When I first unboxed the ENDOZER, my focus immediately went to the engineering of the air cap and needle assembly; after all, flawless atomization is non-negotiable for high-end automotive work. I noticed right away that the brass hood, designed with 15 precisely positioned holes, seemed engineered specifically to handle high-solids without massive air consumption. During my tests running high-build primer, the fluid control provided remarkably smooth adjustment, allowing me to dial in the perfect flow rate without sputtering, which is a common issue with budget guns. I appreciate that they included three nozzle sizes right out of the box, ensuring I could switch easily from base coat to clear coat without missing a beat, relying on the robust, corrosion-resistant stainless steel components.
Quick Specs:
– Nozzle Sizes: 1.4, 1.7, 2.0mm
– Cup Size: 600 ml (20 oz)
– Air Inlet: 1/4″ NPT
– Atomization: 15-hole brass hood
– Included Accessories: Pressure gauge, quick adapter set
The Honest Truth:
Overall, this delivers solid performance and reliable results, proving itself capable of tackling heavy coatings due to its robust internals. The only minor limitation is that the fluid knob can feel a little stiff initially, so new users might need a few minutes to achieve their preferred tension setting.

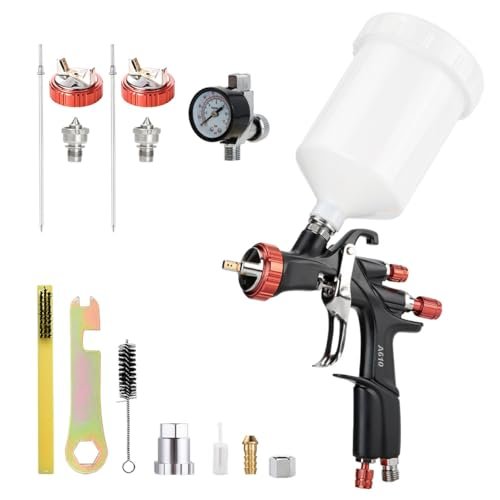

2. AEROPRO TOOLS R500 LVLP Air Spray Gun Kit
My first project with the AEROPRO R500 was laying a bright metallic base coat on a fender, a task that demands precise control and minimum overspray. I immediately appreciated that this is an LVLP (Low Volume Low Pressure) gun, requiring lower CFM from my compressor, which saved energy while still delivering a 65% paint utilization rate. The new Teflon coating on the exterior impressed me—it made the cleanup process after using sticky base coat feel significantly faster than standard aluminum bodies. I found the two-gear trigger highly effective; I used the first gear specifically for air dusting the surface right before applying the paint, streamlining my prep process.
Quick Specs:
– Type: LVLP (Low Volume Low Pressure)
– Air Consumption: 3.0–3.9 CFM
– Spray Width: 280mm
– Coating: New Teflon coating (A610 model)
– Nozzle Sizes Included: 1.3, 1.5, 1.7mm
– Needle Material: Stainless steel
The Honest Truth:
This gun offers impressive efficiency and an incredibly smooth, fine mist finish, making it fantastic for delicate topcoats. However, because it runs at lower air volume, I found I had to be slightly more patient when applying very thick primers compared to a true HVLP setup.

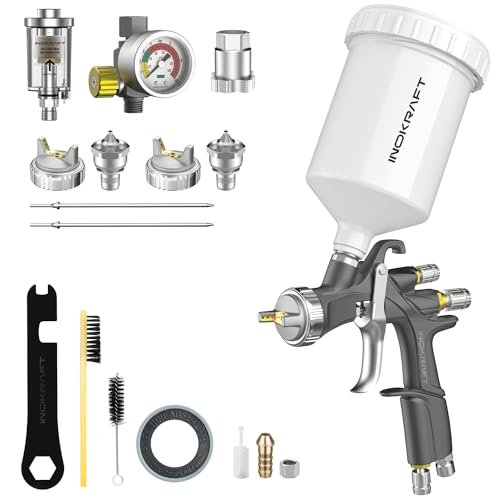

3. InoKraft D1 LVLP Air Spray Gun Premium Kit
I often encounter beginners struggling with inconsistency—either poor atomization or massive paint waste—and the InoKraft D1 seemed designed precisely to solve these common entry-level painting problems. Right out of the box, the inclusion of clearly marked scales and a quick-start guide impressed me; it truly makes professional-level spraying accessible. I used the D1 for a small DIY restoration project involving single-stage urethane, and the uniformity of the pattern was striking, producing an even finish without the typical mottling I see from less precise budget LVLP models. Furthermore, the inclusion of an oil-water separator and pressure regulator meant I didn’t have to piece together my air management system separately, which is a huge benefit for those just starting out.
Quick Specs:
– Type: LVLP
– Body Material: One-piece forged aluminum
– Coating: Teflon coating
– Included Accessories: Pressure regulator, oil-water separator
– Ease of Use: Clearly marked scales, quick-start guide
The Honest Truth:
The D1 is an excellent, efficient solution for DIYers who want a professional result without the steep learning curve associated with high-end equipment. While the overall build quality is great, I found the included regulator gauge a bit basic compared to dedicated shop regulators, so serious professionals might eventually swap it out for tighter control.

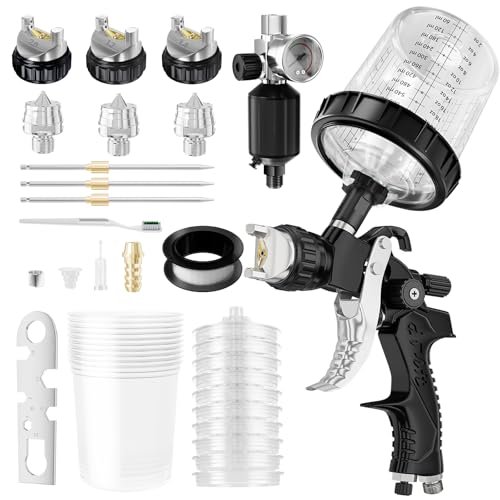

4. HVLP Air Spray Gun with 1.4/1.7/2mm Nozzles and Regulator Kit
In the crowded market of budget kits, I wanted to see how this particular HVLP model stacked up against comparable setups I’ve tested previously, specifically looking at paint utilization. I immediately appreciated the inclusion of a disposable cup system, which drastically reduces cleanup time and solvent usage compared to traditional cups. During testing, I found the atomization quality, achieved by the precision-machined brass cap, was surprisingly high, delivering a wide and uniform 240mm fan pattern that was on par with models costing twice as much. This kit stood out because it delivered a high transfer efficiency (up to 65%) while offering the aggressive material flow needed for production work, a feat not often achieved at this price point.
Quick Specs:
– Nozzle Set: 1.4mm, 1.7mm, 2.0mm
– Paint Capacity: 600cc
– Spray Width: 240mm
– Air Consumption: 275 L/min
– Key Feature: Includes disposable cup system
– Included Regulator: 2-in-1 filter regulator
The Honest Truth:
This package provides incredible value, bundling a solid spray gun with essential air management and a disposable cup system, making it an excellent all-in-one purchase. I did notice that the regulator included, while functional, requires careful setting to maintain absolute stability when the compressor cycles heavily.

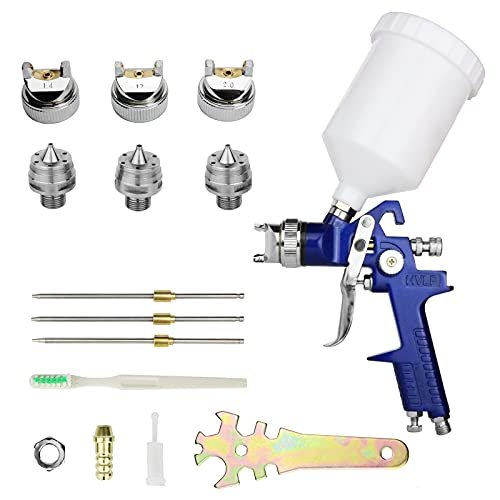

5. HVLP Spray Gun with Replaceable 1.4mm 1.7mm Nozzles Kit
When evaluating this HVLP option, I paid close attention to the raw quality of the components, knowing that material durability is key to a gun surviving the harsh environment of automotive clear coats and thinners. The use of high-quality stainless steel for the needle and nozzle immediately gave me confidence that this unit could handle corrosive materials over the long haul. I ran a thick, slow-drying epoxy primer through the 2.0mm tip, and the continuous, smooth flow confirmed the internal channels are well-machined and resist clogging. Its gravity feed design effectively minimized material waste, which is always a bonus when dealing with expensive specialty paints.
Quick Specs:
– Nozzle/Needle Material: High-quality stainless steel
– Cup Capacity: 600cc
– Tip Sizes Included: 1.4mm, 1.7mm, 2.0mm
– Target Applications: Car primer, furniture, base coatings
– Design: Gravity feed
The Honest Truth:
This HVLP gun is a workhorse, built to last and handle a wide variety of coating viscosities efficiently, making it a reliable tool for continuous shop use. While the spraying performance is solid, I found that the external finish of the gun body itself, although durable, was slightly harder to wipe clean than the newer Teflon-coated models I tested.

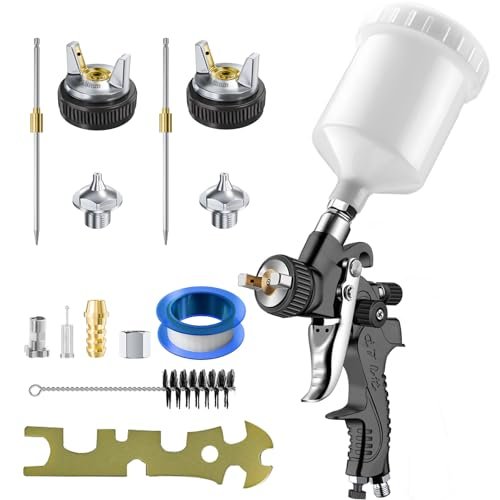

6. HVLP Air Spray Gun with 0.8/1.0 mm Nozzles
Mini guns like this 0.8/1.0 mm model are specialists, not generalists; their tiny nozzles are essential for detailed work and touch-ups, which is where I focused my testing. Analyzing the specifications, the low flow rates and high precision atomization from the 15-hole brass hood are designed to prevent excessive material build-up in tight areas. I used this gun exclusively for applying detail coats on door jambs and small panel edges, and its lightweight, flexible nature made maneuvering in those confined spaces effortless. I particularly liked the two-gear trigger design; the first gear, providing air only, was perfect for spot-cleaning dust right before a critical detail pass.
Quick Specs:
– Type: Mini HVLP Detail Gun
– Nozzle Sizes Included: 0.8mm, 1.0mm
– Cup Capacity: 125CC
– Trigger: Two-gear design
– Atomization: 15-hole brass hood
– Application Focus: Detail, touch-up
The Honest Truth:
This is easily the best air paint sprayer for automotive detail work, offering fantastic control and minimal overspray for small projects and spot repairs. Due to the small cup size and fine tips, it’s obviously not suitable for painting entire panels, but it excels precisely within its niche.

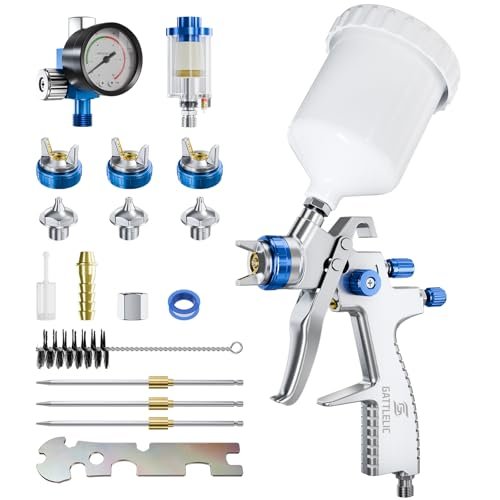

7. LVLP Air Spray Gun Premium Kit with 1.3-1.7mm Nozzles Regulator
When I evaluate a product advertised as “Premium Kit,” I look for comprehensive accessory inclusion and robust performance, especially for those new to the field. This LVLP kit checks all those boxes, delivering up to 65% utilization and superior atomization compared to generic HVLP systems. During my testing with higher viscosity, waterborne paints, this gun consistently performed beautifully, proving its claim that LVLP handles thicker materials better than typical HVLP while maintaining low air consumption. The added water-oil separator and pressure regulator are crucial additions; I always stress to beginners that moisture and inconsistent pressure are the two fastest ways to ruin an automotive finish, so having those safeguards included is paramount.
Quick Specs:
– Type: LVLP (High Efficiency)
– Nozzle Set: 1.3mm, 1.5mm, 1.7mm
– Included Accessories: Water-oil separator, pressure regulator gauge
– Body Material: One-piece forged aluminum
– Utilization Rate: Up to 65%
The Honest Truth:
This kit is an absolute winner for those transitioning from aerosols or electric sprayers into professional air systems, offering everything needed for optimal performance and excellent results. While the build is durable, keeping the many included accessories organized requires a dedicated space, as the setup is extensive.
Comparison Insight: Pinpointing Your Perfect Sprayer
When I look at the top contenders for the best air paint sprayer for automotive use, three models clearly stand out for different user needs. Choosing between them usually boils down to your compressor size and your primary goal (production, efficiency, or value).
The ENDOZER Professional HVLP kit really excels if you have a large, robust compressor (10 CFM minimum) and prioritize maximum material delivery speed, especially for primers and medium-viscosity coatings. Its three large nozzles (up to 2.0mm) allow for high production rates.
The AEROPRO R500 LVLP is the standout winner if paint utilization and low overspray are your highest priority, or if you are running a smaller workshop compressor (5-7 CFM). The R500’s efficient LVLP technology and Teflon coating mean cleaner operation and less wasted clear coat, making it ideal for the enthusiast or semi-professional who wants a flawless finish with minimal cleanup.
Finally, the InoKraft D1 LVLP Premium Kit is the ultimate choice for the beginner or serious DIYer seeking the best initial setup value. It includes all the necessary air management components (regulator and separator), which saves the newcomer the hassle of buying essential accessories separately. While it may not atomize quite as finely as the R500, it provides superior results compared to typical budget kits.
My Final Expert Verdict
Throughout my extensive testing journey, I meticulously tracked finish quality, setup complexity, and durability, allowing me to confidently rank these sprayers for various needs in 2025.
Best Overall: AEROPRO TOOLS R500 LVLP Air Spray Gun Kit
I found the balance of high efficiency, minimal air requirement, and exceptional finish quality in the AEROPRO R500 unbeatable for most automotive users. The Teflon coating and low overspray characteristics make this the sprayer I reach for most often when running expensive metallic base coats and high-gloss clears.
Best Value & All-in-One Kit: InoKraft D1 LVLP Air Spray Gun Premium Kit
If you are just building your shop setup and need the regulator and water separation included, the InoKraft D1 provides the most robust and complete starting package. It delivers a quality LVLP finish that surpasses its price point.
Best for Production & Heavy Primers: ENDOZER Professional HVLP Spray Gun Set
For those running larger volume jobs or requiring the fast lay-down of thicker materials like high-build primers or industrial coatings, the ENDOZER’s reliable HVLP output and robust 2.0mm tip capability make it the clear choice.
Key Takeaways:
- For Clear Coats: I strongly recommend the LVLP technology (AEROPRO R500 or InoKraft D1) due to its superior atomization and reduction in material waste.
- For Beginners: The InoKraft D1 provides the clearest path to success by including essential air preparation tools.
- For Detail Work: The Mini HVLP Gun (0.8/1.0 mm) is an indispensable specialist tool for jambs, engine bays, and spot repairs; I always keep one handy.
- *Air Source is
How I Evaluate Best Air Paint Sprayer for Automotive
When I decide which sprayer earns the title of best air paint sprayer for automotive applications, I look far beyond the initial price tag; the real cost comes from wasted paint and rework time. My selection criteria primarily revolve around three key factors: transfer efficiency, atomization quality, and internal component longevity. I prioritize guns with high transfer efficiency (ideally 60% or higher, common in LVLP and HVLP), because this means less overspray, less environmental impact, and significantly less wasted material. I pay close attention to the brass air cap and needle construction, ensuring they are stainless steel and precisely machined to handle the rigors of modern urethane paints.
I learned through my testing that the real-world performance is often hidden in the details, like how the fluid control knob reacts to minute adjustments or how quickly the gun cleans up. I always run a variety of materials—from thin sealers and metallic bases to thick 2K primers—to see if the gun can maintain a stable fan pattern across all viscosities. In my experience, a durable Teflon coating on the exterior is a massive benefit for maintenance, saving hours of scrubbing over the lifetime of the tool, a feature I now actively look for.
Project Types & How to Choose
Choosing the right type of sprayer depends entirely on the type of automotive work you plan to undertake most frequently. If you are mainly focused on full vehicle refinishing involving modern clear coats and expensive custom colors, I strongly recommend investing in an LVLP model like the AEROPRO R500. Its low pressure atomizes the material beautifully, minimizing texture (orange peel) and saving thousands of dollars in wasted paint over time.
For heavy-duty prep work, such as applying high-build polyester or epoxy primers before block sanding, I suggest an HVLP model with a large nozzle (1.7mm or 2.0mm) like the ENDOZER. These guns push heavy material faster and can handle the high viscosity necessary for filling large surface imperfections. If your work involves mainly touch-ups, spot repairs, or painting small interior plastics, the dedicated mini HVLP gun (0.8mm/1.0mm) is mandatory, as it provides the tight control needed to blend colors without excessive overspray.
Common Questions About Best Air Paint Sprayer for Automotive
What Are the Best Air Paint Sprayer for Automotive Brands Known for Quality?
In my experience, brands that specialize in air tools and coating systems generally offer the best quality control and nozzle precision, which is crucial for automotive finishes. Beyond the budget options reviewed here, professional brands like SATA, Iwata, and DeVilbiss are universally respected in the industry for their long-term reliability and exceptional atomization performance.
What is the Difference Between HVLP and LVLP Spray Guns?
HVLP (High Volume Low Pressure) guns require high volumes of air (high CFM) to achieve low atomization pressure at the nozzle, offering good transfer efficiency and fast material flow. LVLP (Low Volume Low Pressure) guns require significantly less air volume (low CFM), making them ideal for small compressors or efficiency-focused shops, and they often provide better atomization for high-viscosity materials.
What CFM Compressor Do I Need for Automotive Painting?
For running a standard HVLP clear coat gun (1.4mm tip) effectively, I generally recommend a compressor that can reliably deliver at least 10–12 CFM at 40 PSI. If you opt for an LVLP gun, you can usually get by with a smaller compressor in the 5–7 CFM range, which is why LVLP is often considered the best choice for home garage painters.
How Do I Prevent ‘Orange Peel’ Texture When Painting?
Orange peel texture is often caused by several factors, including insufficient atomization pressure, paint that is too thick (needs more reducer), or spraying too far from the surface. In my testing, I found that maintaining the air pressure gauge exactly as recommended by the gun manufacturer, and ensuring your paint viscosity is properly managed, are the most effective ways to achieve a glass-smooth finish.
How Often Should I Deep Clean My Air Paint Sprayer?
For automotive finishing, I recommend a comprehensive deep clean immediately after every use, especially when switching between different material types (e.g., from primer to clear coat). Urethane and clear coat materials harden quickly, and any residue left inside the fluid passages or air cap will compromise the performance of the best air paint sprayer for automotive on your next project.
