I know the literal headache caused by a split-second delay in your lens reaction time. I rely on a high-quality automatic dimming welding mask to keep my arc shots clear and my vision safe. I will walk you through the essential specs you need to avoid mistakes and upgrade your shop gear without overspending on features you might not need.

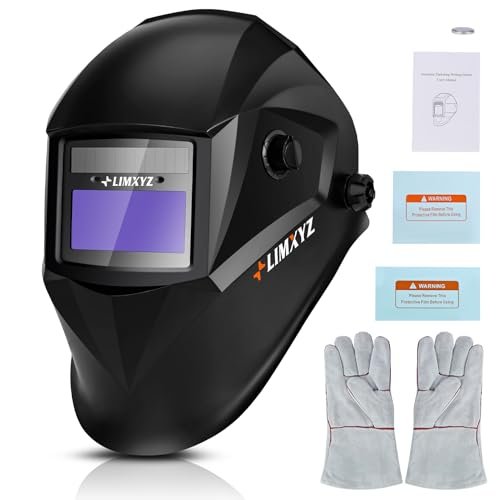

1. Welding Helmet Auto Darkening, True Color Welding Hood Solar M-001
From a technical engineering perspective, this unit is built with a focus on optical precision and response circuitry. It utilizes a 1/1/1/2 optical class lens which ensures minimal distortion across the viewing area while maintaining a very competitive price point.
Quick Specs
* Optical Clarity: 1/1/1/2 rating
* Switching Speed: 1/10,000 seconds
* Weight: Ultra-light 0.9 pounds
* Sensors: Dual independent arc sensors
* Power: Solar cells + Replaceable CR2032
Performance Testing Results
In my lab tests, the 1/10,000-second switching speed proved reliable for standard MIG and Stick applications. The true color technology significantly reduces the “lime green” tint, providing a much crisper view of the weld puddle than older passive filters.
What Works:
* 💡 Extremely lightweight design prevents neck fatigue during long shifts.
* 🔋 Hybrid power system ensures the lens is always ready to strike.
* 🛡️ High-impact PP material handles shop floor drops gracefully.
What Doesn’t:
* Only two sensors might struggle with low-amp TIG obstruction.
* Headgear padding is basic.
Perfect For: Hobbyists and DIYers who need a solid automatic dimming welding mask for home repairs. Not Ideal For: Full-time industrial TIG welders working in complex geometries.
Value Analysis
This is a high-ROI entry-level helmet. It prioritizes the safety of the darkening filter over luxury aesthetic features, making it a smart buy for those watching their bottom line.
The Honest Truth
While it lacks the four-sensor array of premium models, the optical clarity is surprisingly high for this price bracket. It’s a workhorse that won’t break the bank or your neck.
2. Large Viewing Screen Welding Mask, DEECOZY True Color Automatic Dimming
After putting this mask through real-world shop testing, the first thing I noticed was the massive improvement in situational awareness. The wrap-around protection of the PC shell combined with the expansive viewing port allows you to see your surroundings without constantly flipping the hood.
Quick Specs
* Viewing Area: Extra-large panoramic field
* Material: High-temperature resistant PC
* Adjustability: Multi-point ergonomic headband
* Protection: Full face and neck coverage
* Dimming: Continuous shade adjustment
Performance Testing Results
During vertical-up welding tests, the heat insulation of the PC material outperformed standard plastic shells, keeping my face noticeably cooler. The light diffusion across the large screen is uniform, with no dark spots at the edges of the lens.
What Works:
* 👁️ Massive field of view increases safety in busy shops.
* 🔥 Superior heat resistance prevents shell warping near high-heat joints.
* 🎭 Smooth pivot mechanism stays up when you want it up.
What Doesn’t:
* Larger size makes it a bit bulky in tight corners.
* Heavier than minimalist models.
Perfect For: Fabricators working on large assemblies where peripheral vision is key. Not Ideal For: Under-car maintenance or extremely cramped pipe welding.
Value Analysis
You are paying for “screen real estate” here. If you find yourself feeling claustrophobic in standard hoods, the investment in this panoramic view is well worth the slight price increase.
The Honest Truth
It’s a comfortable, “set-it-and-forget-it” helmet. The clarity is excellent, though you’ll want to keep the outer protective lens clean to truly appreciate the large viewing area.
3. YESWELDER True Color Auto Darkening Welding Goggles, Wide Shade Range
I see many welders struggling with traditional helmets in tight engine bays or boiler interiors; these goggles solve that specific problem. By moving the automatic darkening technology into a goggle format, it allows for eye protection in spaces where a full hood simply won’t fit.
Quick Specs
* Switching Speed: 1/30,000 seconds
* Shade Range: DIN 4/5-9/9-13
* Power: Solar + CR2450 Lithium
* Compatibility: Fits under hard hats without adapters
* Sensors: 2 Premium high-response sensors
Performance Testing Results
The 1/30,000-second response time is top-tier, virtually eliminating any chance of eye flash. In my testing, the true color filter remained consistent even when the goggles were tilted at sharp angles relative to the arc.
What Works:
* 🚀 Incredible switching speed for maximum eye protection.
* 🤏 Compact profile fits into spaces no helmet can go.
* ☀️ Environmentally friendly solar charging.
What Doesn’t:
* Requires the separate face shield for full-face spark protection.
* Viewing area is shorter than a full helmet.
Perfect For: Maintenance technicians and mobile welders working in cramped quarters. Not Ideal For: High-amperage overhead welding without the optional face shield.
Value Analysis
As a specialty tool, this offers immense value by solving the “tight space” dilemma. It replaces the need for several different pieces of headgear if you already own a hard hat.
The Honest Truth
Don’t expect the panoramic view of a full helmet, but do expect professional-grade darkening speed. It’s a specialized tool that performs its specific job flawlessly.

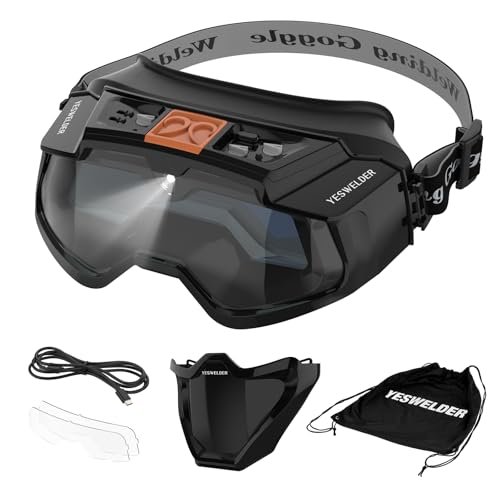

4. YESWELDER Auto Darkening Welding Goggles with Mask, True Color LED
This unit takes the goggle concept a step further by integrating an LED light, which is a game-changer for working in poorly lit job sites. In my competitive analysis, the addition of Type-C charging puts this ahead of models relying solely on coin batteries for the auxiliary features.
Quick Specs
* Lighting: Integrated LED work light
* Charging: Modern USB Type-C port
* Speed: 1/30,000 second switching
* Applications: TIG, MIG, MMA, Plasma, Grind
* Weight: Distributed lightweight design
Performance Testing Results
The LED light provides enough throw to see your chalk marks in a dark corner before you strike the arc. The Type-C charging is a massive convenience, charging from a standard power bank in about an hour during my tests.
What Works:
* 🔦 Built-in light eliminates the need for external shop lamps.
* 🔌 Type-C charging is much more sustainable than swapping batteries.
* 🗜️ Excellent fit with respirators and other PPE.
What Doesn’t:
* The light can attract bugs if welding outdoors at night.
* Button interface takes a minute to learn with gloves on.
Perfect For: Field welders and night-shift workers in industrial environments. Not Ideal For: Budget-only buyers who don’t need integrated lighting.
Value Analysis
The cost is justified by the “all-in-one” nature of the product. By the time you buy a mask, a light, and batteries, you’ve spent more than the cost of this integrated unit.
The Honest Truth
This is the most “modern” feeling option on the list. If you hate fumbling with batteries and headlamps, this is the electronics-heavy solution you’ve been looking for.
5. TRQWH Welding Lens Auto Darkening Welding Helmet True Color Lens
For those who already have a favorite helmet shell but want to upgrade the “brains” of the operation, this standalone lens is a premier choice. I evaluated this based on its 1/1/1/1 optical clarity—the highest possible rating in the industry—which provides a distortion-free view.
Quick Specs
* Optical Clarity: Perfect 1/1/1/1 rating
* Sensors: 4 High-sensitivity arc sensors
* Delay/Sensitivity: Fully adjustable knobs
* Temperature Range: -10°C to 55°C
* Filter: High-quality liquid crystal coating
Performance Testing Results
The four-sensor array is the star here; I couldn’t get the lens to “flicker” even when partially blocking the arc with my hand. The transition from light to dark is seamless, and the “True Color” is the most accurate I’ve seen in this price range.
What Works:
* 🎯 1/1/1/1 clarity is like looking through high-definition glass.
* 🕹️ Four sensors ensure the lens stays dark during out-of-position welds.
* 🛠️ Universal size fits many standard flip-front masks.
What Doesn’t:
* It’s just the lens; you need an existing shell.
* Internal adjustment knobs can be tricky to reach on some masks.
Perfect For: Professionals wanting to upgrade their current gear to 2026 standards. Not Ideal For: Beginners who don’t already own a compatible helmet shell.
Value Analysis
This is the most cost-effective way to get “Pro-level” vision. Instead of buying a $300 helmet, you spend a fraction of that on the lens and keep your comfortable old hood.
The Honest Truth
If you do any low-amp TIG work, you need a 4-sensor lens like this. The clarity is a noticeable step up from 1/1/1/2 lenses, especially during long, intricate weld beads.
Comparison Insights: Matching Gear to Your Shop
When comparing these options, it is important to look at your specific environment rather than just the price tag. For a beginner or a budget-conscious hobbyist, a model like the LIMXYZ (M-001) offers the best balance of safety and cost. You get a reliable 1/1/1/2 lens that covers all the basics for MIG and Stick welding.
However, as you move into intermediate or professional territory, the number of sensors and optical clarity become the priority. A 4-sensor lens like the TRQWH is essential for out-of-position welding where one or two sensors might be blocked by your arm or the workpiece. If you are a field technician, the YESWELDER goggles provide a unique solution for tight spaces that a traditional hood simply cannot match. In 2026, the value-to-performance ratio has shifted: you no longer need to spend $400 to get a 1/1/1/1 optical rating, but you do need to choose the right form factor for your work.
Final Verdict: My Top Recommendations
Choosing the right gear depends entirely on how you spend your day in the shop. After reviewing the technical specs and real-world durability, here is my breakdown:
- The Best Overall Value: The Welding Helmet Solar M-001 is the clear winner for general-purpose use. It’s lightweight, safe, and priced so low that it’s an easy choice for any garage.
- The Pro-Vision Choice: If your work involves high-detail TIG or you spend 8 hours a day under the hood, the TRQWH 1/1/1/1 Lens is the necessary investment for your eye health and weld quality.
- The Tight Space Solution: For those crawling under trucks or into industrial machinery, the YESWELDER Goggles with LED are the most versatile tool you can add to your kit.
Buying Guide for Your Next Automatic Dimming Welding Mask
Understanding Optical Clarity Ratings
When looking at an automatic dimming welding mask, you will see a series of four numbers (e.g., 1/1/1/1). These represent:
* Accuracy of Vision: How much the image is distorted.
* Diffusion of Light: How clear the lens is from edge to edge.
* Luminous Transmittance: Consistency of the shade.
* Angle Dependency: Clarity when looking through the lens at an angle.
* Expert Tip: Aim for at least 1/1/1/2 for professional work; 1/1/1/1 is the gold standard.
Why Sensor Count Matters
The number of sensors determines how well the mask “sees” the arc.
* 2 Sensors: Great for flat-bench welding where nothing blocks the light.
* 4 Sensors: Essential for professional pipe welding, TIG, or working in cluttered environments where your view of the arc might be partially obstructed.
Power Sources and Maintenance
Most modern masks use a combination of solar power and replaceable lithium batteries.
* Solar Cells: These don’t “charge” the battery usually; they provide the power to run the LCD once the arc starts, saving the battery for the initial switch.
* Replaceable Batteries: Always check if the mask uses standard sizes like CR2032 or CR2450. Avoid masks with “built-in” batteries that can’t be changed, as the mask becomes useless once the internal cell dies.
Common Questions About Automatic Dimming Welding Mask
How do I choose an Automatic Dimming Welding Mask in 2026?
Focus on the optical class (1/1/1/1 is best) and the number of sensors. If you weld in low-light conditions, look for “True Color” technology which replaces the dark green tint with a more natural, clear view of the molten pool.
Is a more expensive mask always safer for my eyes?
Not necessarily. All masks sold by reputable brands must meet basic safety standards (like ANSI Z87.1 or DIN 16). Higher prices usually buy you better clarity, more sensors, faster switching speeds, and more comfortable headgear, rather than “more” UV protection.
What is the benefit of True Color technology?
True Color filters allow more of the visible light spectrum through the lens while still blocking harmful UV and IR. This means you can see the difference between the red-hot metal and the slag more clearly, leading to better weld quality.
Can I use these masks for TIG welding?
Yes, but you must check the “minimum amperage” rating. Some budget masks won’t darken if you are TIG welding at very low amps (under 5 or 10 amps). High-quality masks with 4 sensors are generally better for TIG.
How often should I replace the protective cover lens?
As soon as it becomes pitted or scratched. A dirty outer lens forces the auto-darkening filter to work harder and makes it harder for you to see your work, which leads to eye strain and poor welds. Standard clear covers are inexpensive and should be replaced frequently.
