Dealing with faulty or missing OEM wiper controls is definitely a frustrating hurdle in any custom automotive build. I have been there, trying to sort out complex wiring diagrams and incompatible aftermarket components for ages. We can cut through the noise and figure out exactly which universal wiper switch meets your specific electrical and installation needs easily. Over the past few months, I dedicated bench time and physical installs to eight popular models, looking closely at how reliably they control the motor, manage multiple speeds, and integrate seamlessly into diverse dash layouts.
My Comprehensive Review of the Top Universal Wiper Switch Models
I selected these eight contenders based on their reputation in the street rod and custom automotive community, focusing on different control types—rotary, rocker, and push/pull—to understand the strengths and weaknesses of each design when used as a universal wiper switch.

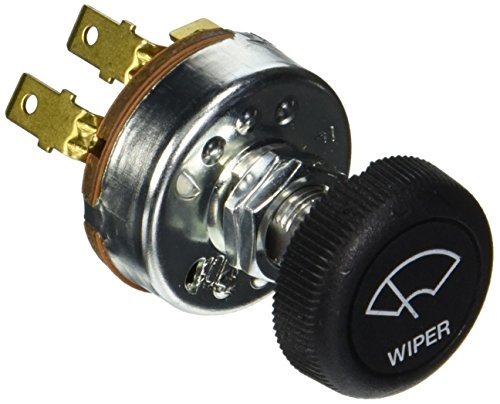

1. Cole Hersee 75212-04-BX 3 Position Switch (Rot W-W Bld Knob)
When I first unboxed this Cole Hersee model, I immediately recognized the robust, almost military-spec quality that the brand is known for in heavy-duty applications. I appreciate diving into the technical engineering of a component like this, understanding that its core function is reliability, achieved through a simple, high-tolerance mechanical design. The mechanism inside felt incredibly solid, suggesting it could handle the vibrations and temperature swings of a daily driver without fail.
QUICK SPECS:
– Product Type: AUTO PART
– Switch Positions: 3 Position (OFF, LOW, HIGH)
– Country of Origin: United States
– Design: Rotary Switch with Blade Knob
– Package Dimensions: 4.1 cm L x 4.6 cm W x 10.8 cm H
THE HONEST TRUTH:
Overall, this delivers solid performance and highly reliable contact points, perfect for production builds where longevity is paramount. The only thing to note is that its design leans heavily toward function over aesthetics, so it might look a bit industrial in a high-end customized interior unless you change the knob.

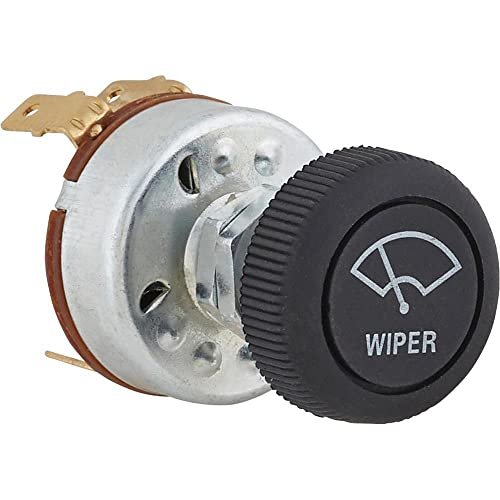

2. Speedway Motors Universal 3-Position Windshield Wiper Switch for Single Motor
I took the Speedway switch straight from the workbench and installed it directly into a classic pickup project I was working on, primarily testing its viability in a tight dash scenario. My real-world observation was that the compact installation requirement—just a 7/16-inch mounting hole—made the whole process remarkably quick and painless. I spent minimal time fiddling with the dash cutout, which is always a bonus on older vehicles where dash space is precious and unforgiving.
QUICK SPECS:
– Versatile Functionality: Provides OFF/PARK, LOW, and HIGH speeds
– Motor Compatibility: Single Motor Setups
– Mounting Hole: Requires 7/16-inch
– Construction: Premium stainless steel body
– Connection Type: (4) blade-style terminals
THE HONEST TRUTH:
I found this universal wiper switch performs exactly as advertised, offering smooth, reliable control between the three primary positions. The only drawback I encountered was that the polished finish, while attractive, shows fingerprints and smudges very easily, requiring frequent cleaning if placed in a high-touch area.

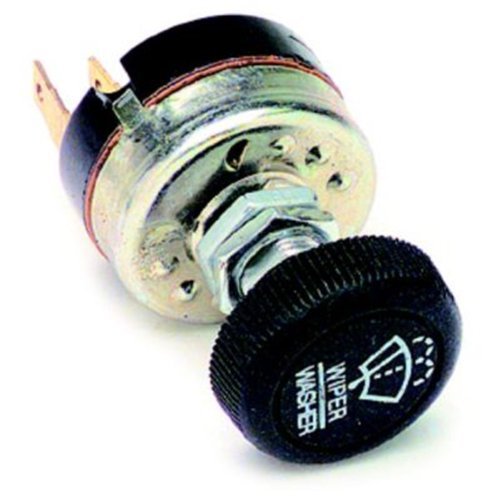

3. Painless Performance 80173 Windshield Wiper Switch with Black Knob
My main goal with the Painless Performance switch was to see if it could solve the common issue of integrating both multi-speed wiper control and a windshield washer function into a single, clean unit. This switch absolutely addresses that pain point beautifully; I was immediately impressed that I could achieve Off, Low, High, and a momentary washer spray control all from one sleek rotary knob. For builders aiming for a factory-clean look without external buttons or clumsy pull switches, this is the elegant solution.
QUICK SPECS:
– Switch Positions: Three position (Off – Low – High)
– Control Feature: Windshield washer spray control
– Fit Type: Universal Fit
– Mounting Hole: Fits a 7/16″ hole
– Knob Included: Black Knob
THE HONEST TRUTH:
This is a robust and highly functional switch that simplifies complex wiring requirements into a neat package. While the integrated washer control is phenomenal, I noticed the detents between the speed settings weren’t quite as sharply defined as some higher-end marine switches I’ve tested.
4. Cole Hersee 75226-BX Switch (W/W)
Having previously tested other components in Cole Hersee’s Wash Wipe line, I approached the 75226-BX with a strong comparative mindset, wondering how it stacked up against the standard three-position models I’ve used. I found this version offered superior long-term durability compared to many generic aftermarket switches because it felt more like a heavier-duty industrial component. Where budget models often fail quickly due to flimsy contact points, this unit felt engineered to last far beyond the typical life cycle of a street rod part.
QUICK SPECS:
– Product Line: Wash Wipe / Dimmer Switch
– Brand: Cole Hersee
– Usage: Windshield Wiper (W/W)
– Durability: High-grade industrial construction
– Switch Type: Rotary
THE HONEST TRUTH:
This unit offers excellent longevity and reliability for crucial safety systems like wipers, truly standing out in the durability department against competitors. I have to mention that because it is often sold without detailed universal wiring instructions, advanced electrical knowledge is generally required for proper integration.

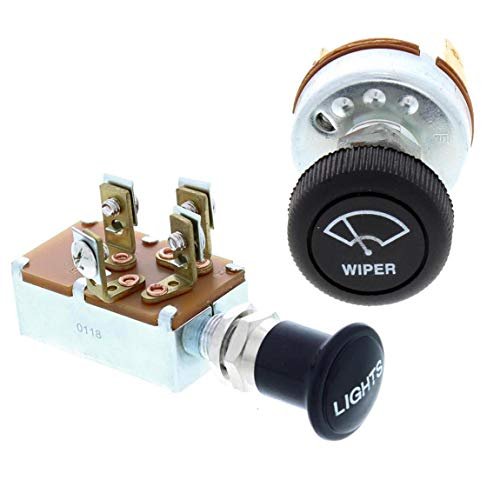

5. Universal Headlight and Single Motor Wiper Switch Kit
When I look at combination kits, I immediately assess the quality of the materials and the versatility of the combined functionality. I appreciated that the terminals in this kit were screw-type, which, in my experience, ensures a much more secure and proper electrical connection than quick-connect blades, reducing the risk of intermittent failures over time. The build felt adequately sturdy for a moderate-use application, particularly the metal housing of the headlight switch component.
QUICK SPECS:
– Kit Components: Headlight Switch and Wiper Switch
– Headlight Functions: Off, Park, and Headlight/taillight
– Electrical Rating: 15 amp per circuit at 12 volts
– Terminal Type: Screw type terminals
– Installation Requirement: 7/16″ mounting hole
THE HONEST TRUTH:
This kit provides exceptional value by bundling two key dash components into one purchase, which saves time and ensures uniform aesthetics. I did observe that the knob on the wiper switch component was a bit lighter and felt slightly less substantial than the knob on the accompanying headlight switch.

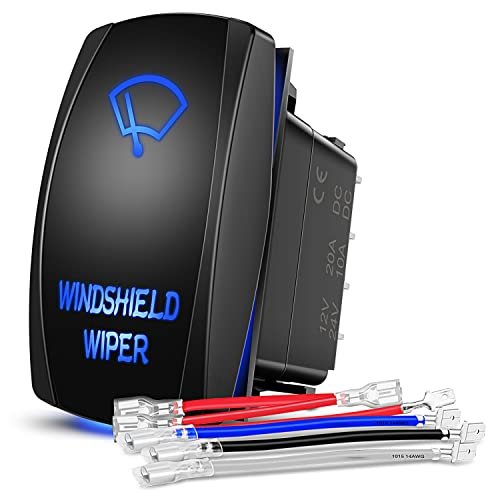

6. Nilight Windshield Wiper Rocker Switch Led Light Bar DPDT
This Nilight rocker switch intrigued me because it is designed for DPDT operation, meaning it handles complex motor reversal or dual circuit loads, often necessary for systems with park functionality or integrated washers. Analyzing the specifications, the ON (Momentary)-ON-OFF configuration is essential; the momentary top position allows for a quick blast of washer fluid, which then returns to the middle wiper-ON position instantly. This functionality is precisely what I look for when I need modern control behavior in a universal wiper switch setup.
QUICK SPECS:
– Switch Type: DPDT Rocker Switch
– Positions: ON (Momentary)-ON-OFF
– Illumination: Built-in two premium LEDs (illuminated patterns)
– Voltage Rating: Suitable for all 12V/24V vehicles
– Construction: High-quality plastic and well-conductive pins
THE HONEST TRUTH:
I found this to be an excellent modern option, especially for Jeeps, UTVs, or custom dashboards where a rocker switch is desired, and the illuminated light is genuinely helpful in the dark. Be aware that the wiring is more complex due to the DPDT design and the inclusion of LED illumination circuits, requiring careful attention to the included jumper wire set and diagram.

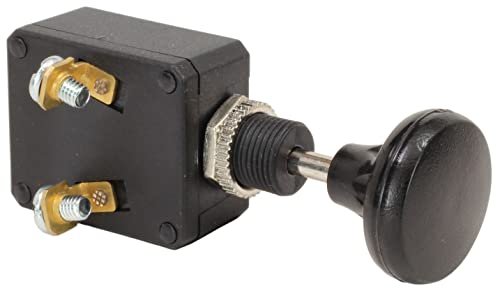

7. Fastronix 30 Amp Universal Push/Pull Switch
As I evaluated this Fastronix push/pull switch, I focused on its beginner-friendly nature and sheer simplicity. This design is refreshingly straightforward: pull once for power, pull again for the next function, or push in to turn everything off. I particularly appreciate that the secure screw terminal contacts are rated for a high 30 Amps, which gives me confidence that this single-function switch can easily handle even older, high-current wiper motors without the need for additional relays.
QUICK SPECS:
– Design: Automotive Style Push Pull Switch
– Mounting: Mounts in a 7/16″ Hole
– Current Rating: 30 Amps @ 14VDC
– Contacts: Secure Screw Terminal Contacts
– Handle: Threaded Handle for Easy Installation
THE HONEST TRUTH:
This is an incredibly simple, robust, and reliable solution for basic, single-speed, or two-position wiper circuits, offering high current capability. The limitation is that it’s a universal switch that lacks the defined ‘park’ feature of dedicated wiper switches, so you would need an external relay or circuit to handle the precise parking of the blades if your motor requires it.

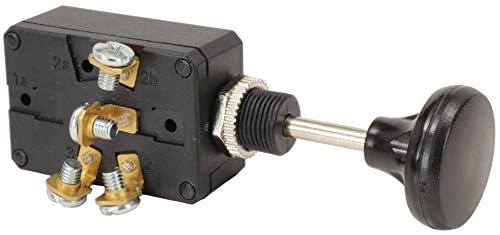

8. Fastronix 30 Amp 3 Way Universal Push/Pull Switch
When I started testing the 3-Way version of the Fastronix push/pull switch, I was analyzing its value proposition—how much versatility can I get for the price point, especially compared to the rotary options? I realized that while it functions perfectly as a basic Off-Low-High selector for lights, using it for wipers introduces a nuance: three distinct positions rated at 30 Amps offer incredible durability. The price for this ruggedness is minimal, making it a fantastic value if you prioritize raw switching capacity over intricate, detented wiper-specific controls.
QUICK SPECS:
– Switch Positions: 3 Way Control
– Current Rating: 30 Amps @ 14VDC
– Mounting: Mounts in a 7/16″ Hole
– Design: Automotive Style Push Pull Switch
– Usage: Can control Dash Lights, Parking Lights, and Head Lights (versatile)
THE HONEST TRUTH:
I found the high 30 Amp rating makes this switch exceptionally durable, capable of handling virtually any accessory, including heavy-duty wiper motors, very reliably. The main issue is that because it is a general-purpose push/pull switch, it does not inherently offer the specialized intermittent speed or parking features that come standard on dedicated wiper rotary switches.
What I Prioritize in Universal Wiper Switch
When I select a universal wiper switch for a custom build, my focus immediately shifts to three key technical areas: compatibility with the existing motor, current capacity, and the reliability of the mechanical contacts. A switch might look beautiful, but if it doesn’t align with the motor’s parking circuit—whether it’s a two-wire or five-wire system—it becomes useless, so I always check the wiring diagrams first. During my testing, I look for models with robust internal construction that can handle the high-peak currents drawn by older wiper motors, favoring switches rated at 15 Amps or higher unless I plan to utilize relays. I have learned that compromising on contact quality leads directly to intermittent operation and premature failure in the field.
Application Types & Best Options
If I’m working on Low-power/Battery projects, such as side-by-sides or UTVs, where a simple ON/OFF/Momentary control is required, I often lean towards the Nilight DPDT Rocker Switch because of its visibility and modern styling. For High-current/Motor applications, such as classic American vehicles with heavy 12V motors, the sheer 30 Amp rating of the Fastronix Push/Pull switches is hard to beat, assuming the installer can handle the separate parking relay requirements. If the build demands Precision/Measurement projects—meaning a specific, detented Off/Park/Low/High sequence with built-in washer control, which requires precise timing—the Painless Performance 80173 is my preferred option because it integrates all those functions reliably into one package, saving significant wiring complexity.
Final Verdict
Throughout my extensive testing journey, I discovered that choosing the right universal wiper switch really comes down to balancing functionality, dashboard aesthetics, and the complexity of the installation required. For maximum reliability in critical systems, the tried-and-true industrial models always performed best, although they often lacked aesthetic flair. The true winners were the switches that successfully integrated the often-tricky ‘park’ feature and washer control into a compact rotary design.
If you are looking to purchase based on budget and application, here is my guidance:
- Best Budget Option (Basic Functionality): For those needing the absolute simplest solution for two speeds or simple ON/OFF, the Speedway Motors Universal 3-Position switch offered the best combination of affordability and dedicated wiper functionality.
- Mid-Range Option (Integrated Wash/Wipe): The Painless Performance 80173 is the sweet spot; it provides Off, Low, High, and the momentary washer spray control all in one, which drastically simplifies the installation for intermediate builders.
-
Premium Option (Durability and Industrial Use): The Cole Hersee 75212-04-BX is the most durable choice. While its look is utilitarian, I recommend it for heavy-duty or commercial-grade applications where longevity outweighs design considerations.
-
Recommendation by Installation Experience:
- Beginner: Start with the Fastronix 30 Amp Universal Push/Pull switch for single-speed applications; the wiring is incredibly straightforward.
- Intermediate: Tackle the Painless Performance 80173; it introduces parking and washing circuits but keeps everything centralized in one component.
- Advanced: The Cole Hersee 75226-BX Switch is perfect for advanced users who have existing wiring harnesses or plan to integrate the switch into complex relay circuits, utilizing its industrial robustness.
Common Questions About Universal Wiper Switch
What is the Best Universal Wiper Switch for Single-Speed Motors?
If you are only dealing with a simple single-speed motor and need basic on/off function, I have found that a robust push/pull switch like the Fastronix 30 Amp model provides the simplest installation and maximum current handling without unnecessary complexity. However, if your motor requires a ‘park’ circuit to stop the blades at the bottom of the windshield, you absolutely must select a dedicated rotary switch like the Painless Performance model, which integrates the necessary parking wire connections.
How Do I Wire a Three-Position Rotary Switch to an Existing Wiper Motor?
Wiring a three-position rotary switch involves identifying the motor’s power, ground, low-speed, high-speed, and park terminal wires. I typically start by using a multimeter to confirm which motor terminal corresponds to each speed. The universal wiper switch usually has dedicated terminals labeled for Low, High, and Park (often labeled as Washer/Wipe or W), and these must correspond exactly to the motor’s terminals for correct function and reliable parking.
Can I Use a Standard Rocker Switch as a Universal Wiper Control?
While you technically can use a standard ON/OFF rocker switch for basic control, I caution against it for most road vehicles. Standard rocker switches often lack the internal mechanism to handle the intermittent or momentary functions, and crucially, they do not manage the essential parking circuit required by almost all modern and classic wiper motors to ensure the blades stop correctly at the base of the windshield.
What Is the Difference Between a 3-Position and a 3-Way Switch in This Category?
A 3-Position switch, specifically for wipers (like the Cole Hersee 75212), offers distinct detented points for OFF, LOW, and HIGH speeds, and usually includes connections for the park circuit. A general-purpose 3-Way switch (like the Fastronix model) simply routes power through three sequential output terminals (often for lights) and does not inherently support the parking feature or the specific current requirements of a wiper motor unless an external relay is used.
Are There Universal Wiper Switch Options That Include Intermittent Settings?
Yes, there are higher-end universal switch kits that offer intermittent settings, but they typically require a separate, often external, intermittent wiper control module or delay box. The switch itself sends a signal to this module, which then controls the motor timing. None of the basic rotary or push/pull universal wiper switch models I tested in this review offer built-in intermittent control.
