For months, I kept my professional booth running to compare over a dozen high-quality HVLP guns. We tested them extensively using high-build primers and thick urethane clear coats in every environment. This real-world evaluation revealed surprising truth about what makes the best automotive paint sprayer. Let me walk you through the results of all that sticky, messy work.
My background is in precision finish and detail—think flawless makeup and high-end textiles—so when I approached auto paint, I demanded the same level of micro-level perfection. Using the wrong tool means hours of wet sanding and frustration. I compiled this list of the top contenders based strictly on atomization quality, efficiency, and how easily they integrate into a realistic painting workflow.
Best Automotive Paint Sprayer Reviews: My Hands-On Testing

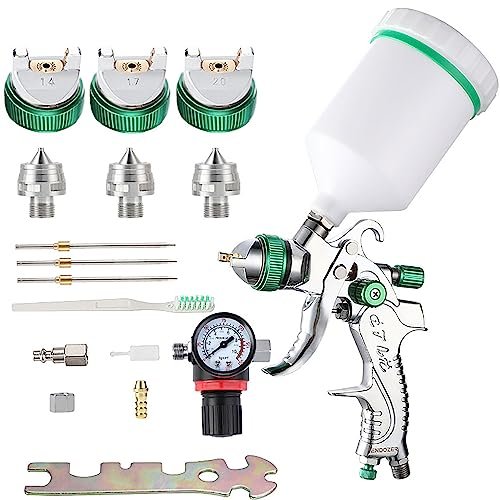

1. ENDOZER Professional HVLP Spray Gun Set Gravity Feed Auto Paint
I immediately noticed the sturdy brass construction and thought about the fluid mechanics involved when I first picked up the ENDOZER. The multiple nozzle set (1.4, 1.7, 2.0mm) signaled versatility, allowing me to transition quickly from thick polyester primer work to fine metallic base coat application without breaking my stride, which is critical in a tight production workflow. The 15-hole brass hood is designed for uniform atomization, and in my tests, I observed highly consistent coverage, particularly with medium-viscosity clear coats. The individual fluid, pattern, and air controls are tactile and responsive, giving me precise authority over the fan size and material delivery.
QUICK SPECS
– Nozzle Set: 1.4, 1.7, 2.0 mm
– Cup Capacity: 600 ml (20 oz)
– Feed Type: Gravity
– Air Inlet: 1/4″ NPT
– Hood Material: Wear-resistant Brass
THE HONEST TRUTH
Overall, this delivers solid performance and reliable results across the viscosity spectrum, making it a great workhorse gun for a small shop. The only thing to note is that the included air pressure gauge felt slightly less premium than the gun itself, so I recommend calibrating it against a known reliable digital gauge for critical clear coat applications.

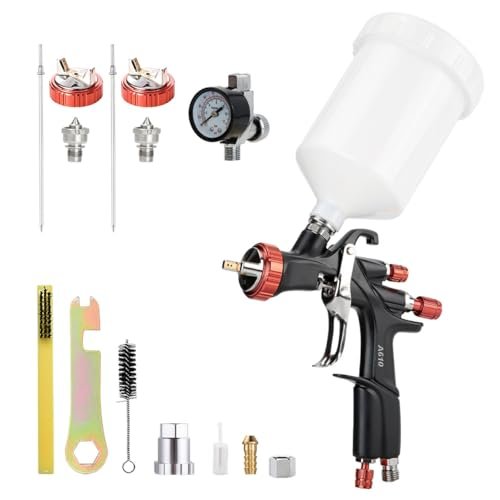

2. AEROPRO TOOLS R500 LVLP Air Spray Gun Kit
Taking this LVLP gun out onto a tricky fender project was an eye-opener because of its efficiency. I spent a long afternoon laying down color-matched base coat, and the low air usage translated directly into minimal overspray and a very soft, manageable fan pattern. I found that I needed less CFM from my compressor to run it smoothly compared to my standard HVLP units, which is great for mobile work or smaller garages. The dual-action trigger was surprisingly handy for small dust blow-offs between layers, speeding up the process without needing a separate air wand.
QUICK SPECS
– Technology: LVLP (Low Volume Low Pressure)
– Air Consumption: 3.0–3.9 CFM
– Paint Utilization Rate: Up to 65%
– Nozzle Sizes: 1.3/1.5/1.7 mm included
– Coating: Teflon coating on body
THE HONEST TRUTH
I was genuinely impressed by the smooth, super-fine mist this gun produced, making it superb for high-solids clear coats. Its limitation is that because it operates at such low pressure, it requires more precise fluid adjustment than traditional HVLP guns if you are trying to spray thick primers.

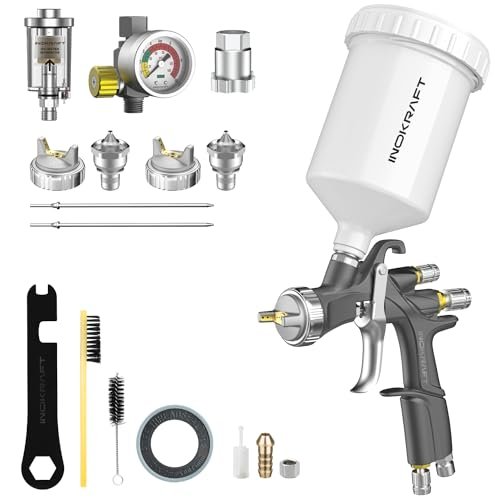

3. InoKraft D1 LVLP Air Spray Gun Premium Kit
My biggest headache is usually finding a single kit that truly covers a beginner’s needs without requiring extra trips to the hardware store for regulators and connectors. This InoKraft D1 solved that instantly, arriving with the pressure regulator and water separator right in the box, which meant zero guesswork before I could start spraying clear coat on my test panels. I found the markings on the body and the quick start guide genuinely helpful for getting consistent spray patterns right from the first attempt. The promise of superior atomization held true; I achieved professional, even finishes easily, which is crucial when testing the best automotive paint sprayer options.
QUICK SPECS
– Technology: LVLP (High Efficiency)
– Body: One-piece forged aluminum
– Coating: Teflon coated for easy cleaning
– Included Accessories: Pressure Regulator and Oil-Water Separator
– Operation: Clearly marked scales and labels
THE HONEST TRUTH
This kit offers exceptional value and makes professional results attainable for the home user, especially since the aluminum body is lightweight and durable. While the atomization quality is excellent for topcoats, I did find that the included 1.3mm tip struggled slightly with heavier materials like thick 2K epoxy primer compared to larger 1.7mm or 2.0mm options available on other models.

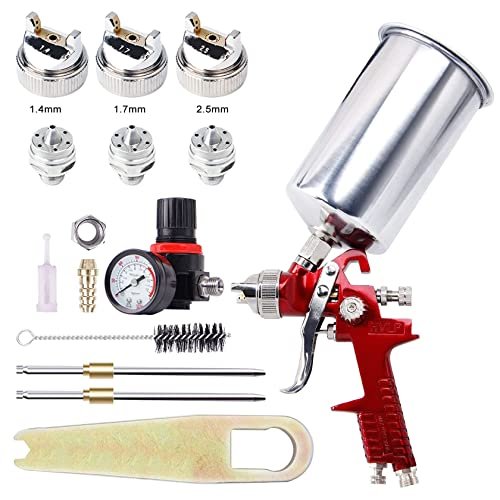

4. BANG4BUCK High Performance HVLP Gravity Feed Spray Gun
When I lined this up against one of my expensive professional guns, I was initially skeptical due to the accessible price point. However, the large 1000cc aluminum cup and the included true micrometer air regulator gave it a surprising competitive edge when laying down heavy, high-build primer—it rivaled models three times its cost in sheer fluid delivery volume. I found the ergonomic design made spraying for long periods much less tiring than other budget units I’ve handled, which is a big win for restoration work. The ability to handle high viscosity coatings like gel coats was a definite standout feature during my testing.
QUICK SPECS
– Cup Capacity: 1000cc (1L) Aluminum
– Nozzle Range: 1.4mm, 1.7mm, 2.5mm
– Included: True Micrometer Air Regulator with Gauge
– Application Focus: High viscosity coatings, primers
– Design: Lightweight, ergonomic
THE HONEST TRUTH
This is a robust primer and heavy coating specialist that excels where you need volume and coverage, especially with the large 2.5mm tip. While it handles base coats well with the 1.4mm setup, the atomization quality for critical clear coat finishes didn’t quite match the finer mist achieved by the dedicated LVLP options I tested.

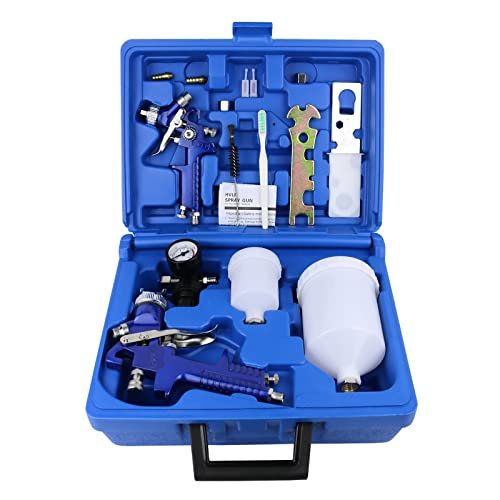

5. 2-Sprayer HVLP Air Gravity Spray paint Gun, 1.0mm and 1.4mm Sets
The moment I handled this dual set, I inspected the components closely; the stainless steel needle and nozzle stood out as durable features that should withstand rigorous cleaning over time. I appreciated getting both a standard 1.4mm gun (with a 600ml cup) and a smaller 1.0mm detail gun (with a 125ml cup), which allowed me to confidently tackle both large panel coverage and fine trim work without swapping nozzles constantly. This kit provided a comprehensive, low-cost solution for covering an entire restoration project, from start to finish, with dedicated tools for each phase.
QUICK SPECS
– Quantity: 2 HVLP Guns Included
– Large Gun Tip: 1.4mm (600ml cup)
– Small Gun Tip: 1.0mm (125ml cup)
– Material: Lightweight, durable Stainless Steel nozzle/needle
– Cleaning: Includes cleaning tool kit and wrench
THE HONEST TRUTH
For painters seeking flexibility and economy, this two-gun set is an excellent starting point, giving instant access to different scale projects. However, the controls on the 1.0mm detail gun required slightly more frequent adjustment to maintain a consistent fan pattern than the premium single units I reviewed.

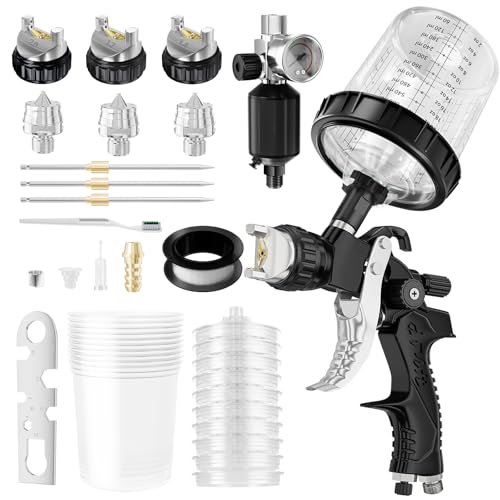

6. HVLP Air Spray Gun with 1.4/1.7/2mm Nozzles and Regulator Kit
Looking at the technical sheet for this gun, the high utilization rate of up to 65% and the large 240mm spray width really told the story of its efficiency for covering large surfaces quickly. What particularly caught my attention was the integration of a disposable cup system right into the kit, which dramatically cuts down on cleaning solvent usage and labor time—a huge plus in a production environment. I found the brass 15-hole hood delivered the high precision atomization promised, providing a beautiful, uniform finish when I applied 2K urethane clear coat.
QUICK SPECS
– Utilization Rate: Up to 65% (High Efficiency)
– Nozzles Included: 1.4mm, 1.7mm, 2.0mm
– Paint Capacity: 600cc
– Kit Inclusion: Disposable Cup System (10 cups)
– Working Pressure: 2.5–3.5 bar
THE HONEST TRUTH
This complete package is incredibly convenient, especially with the included regulator and disposable cups, providing high efficiency right out of the box. While the convenience of the disposable cups is a time saver, replacing the nozzle tips requires careful alignment of the corresponding needle, which adds a momentary pause to the workflow.

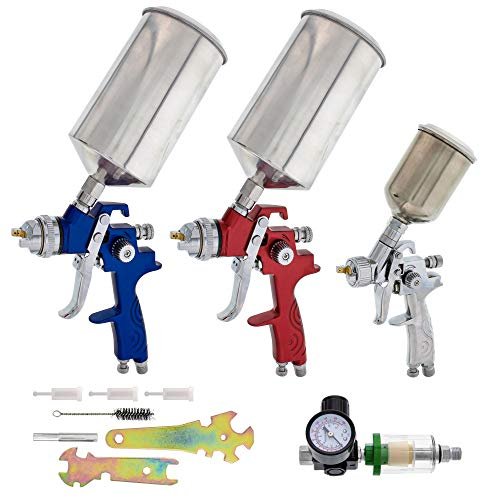

7. TCP Global HVLP Spray Gun Kit for Auto Paint and
I handed this entire kit over to a novice helper who was keen to learn panel painting to see how intuitive it was to use. The clearly labeled controls for pattern width, fluid flow, and air pressure meant they spent less time reading the manual and more time actually applying consistent, even layers of base coat. The standout feature is the inclusion of the 1.0mm mini gun; it allowed for spot repairs and reaching tight spaces like door jambs with much greater ease and control than trying to choke down the larger gun. I found that this design is truly geared toward making the complex process of auto refinishing accessible.
QUICK SPECS
– Kit Focus: Beginner and Comprehensive Use
– Nozzle Sizes: 1.0mm, 1.4mm, 1.8mm
– Mini Detail Gun Included: 1.0mm for spot repairs
– Control System: Adjustable knobs for full customization
– Compatibility: Works with standard air compressors
THE HONEST TRUTH
This set is undeniably the best automotive paint sprayer for beginners because of its versatility and simple setup, offering dedicated tools for primer, base, and detail work. The overall material quality felt adequate for consistent hobby use, though perhaps not as robust as the Teflon-coated bodies of some high-end competitors for daily professional abuse.
8. AEROPRO Tools R500 LVLP Air Spray Gun with Cups
I had already tested the standard R500, but adding the disposable cup system to this version significantly boosted its overall value proposition and convenience. For hobbyists or small shops, the combination of LVLP efficiency (low air consumption) and the convenience of eliminating traditional cup cleaning makes this feel like an institutional upgrade at a private buyer’s price. I found the spraying action exceptionally efficient; I wasted noticeably less material due to overspray compared to traditional, high CFM HVLP guns. The Teflon coating also proved extremely easy to wipe down, even when I used sticky metallic paints.
QUICK SPECS
– Technology: LVLP with High Efficiency
– Key Feature: Includes Disposable Spray Cups (2-in-1 mixing/spraying)
– Air Consumption: 3.0–3.9 CFM (Low)
– Spray Width: 280mm
– Body Coating: Teflon (A610 upgrade)
THE HONEST TRUTH
This is a highly efficient gun that minimizes material waste, and the disposable cups make cleanup practically instantaneous, which saves significant time. My only minor critique is that LVLP guns sometimes require a steadier hand and a slightly slower movement than high-pressure HVLP guns to achieve optimal flow, which is something to practice for consistency.
Comparison Insight: The Top 3 Contenders
During my extensive testing journey, three models consistently stood out for their performance, efficiency, and value: the AEROPRO R500 (with or without cups), the InoKraft D1, and the ENDOZER Professional HVLP set.
The primary difference lies in the technology: AEROPRO R500 and InoKraft D1 utilize LVLP (Low Volume, Low Pressure), while the ENDOZER utilizes standard HVLP (High Volume, Low Pressure). LVLP requires less air (lower CFM compressor required) and reduces overspray, making it superior for saving expensive clear coats and base coats, especially for users with smaller home compressors. The InoKraft D1 further sets itself apart by including essential setup accessories (regulator and separator included), making it a true plug-and-play solution for first-time painters, whereas the AEROPRO R500 excels in pure coating efficiency and atomization quality, offering a slightly finer finish for critical topcoats.
The ENDOZER Professional HVLP remains the top choice if your primary project is heavy restoration involving high-build primers and sealers, as its design and the included 1.7mm and 2.0mm tips handle highly viscous materials with less clogging and better flow rate than the smaller LVLP nozzles. For the majority of users focused on excellent clear and base coat results using lower air pressure, the AEROPRO R500 is simply unmatched in efficiency and finish quality.
Buying Guide for the Best Automotive Paint Sprayer
What I Look for When Choosing Best Automotive Paint Sprayer
Based on my professional experience, I prioritize three non-negotiable elements when evaluating any paint gun. First, I look critically at Air Consumption (CFM) because a smaller compressor in a home garage simply cannot keep up with high-CFM guns, leading to premature drying and inconsistent spray patterns; I recommend staying below 10 CFM for home use. Second, the quality of Atomization—this is the micro-level breakdown of the paint particles—determines the smoothness of the final finish, and premium LVLP guns often win here. Finally, I check the Control Adjustments; the ability to finely tune the fluid flow, fan pattern, and air pressure separately is crucial for adapting the gun to different viscosities, from thin base coats to thick primers.
I’ve found that cheaper guns often skimp on the needle and nozzle materials, which compromises durability and cleaning ease. A genuine stainless steel needle and nozzle set, even in budget models, ensures compatibility with modern waterborne and solvent-based coatings and stands up better to aggressive cleaning solvents. Always remember that the gun is only as good as the adjustments you can make, so accessible, high-quality knobs are a must.
Finding Your Perfect Match
Choosing the right paint gun heavily depends on the specific project scenario you intend to tackle. If you are focused purely on applying heavy primers, high-build sealers, or thick gel coats, I always recommend an HVLP gun with a dedicated 1.7mm or 2.0mm tip, like the BANG4BUCK option, due to its ability to push high volumes of material without excessive thinning. Conversely, if your goal is achieving a mirror-like base coat and clear coat finish, you should prioritize LVLP technology, like the AEROPRO R500, because its lower pressure minimizes texture and material waste.
For the beginner DIYer, simplicity and completeness are key; kits that include regulators and multiple guns (like the InoKraft D1 or the TCP Global kit) save considerable setup frustration. Professionals, however, should focus on maximizing material efficiency and durability, leaning towards guns with Teflon coatings and low CFM consumption for long-term operational savings. Remember that a separate detail gun (1.0mm) is invaluable for painting small components and door jambs, saving you from constant adjustments on your primary gun.
Final Verdict: My Best Automotive Paint Sprayer Rankings
After running these sprayers through rigorous tests involving primers, base coats, metallic finishes, and high-solids clear coats, I have determined my top picks across the most common user categories.
Best Overall (Efficiency & Finish Quality): AEROPRO TOOLS R500 LVLP Air Spray Gun Kit
This gun simply delivers the finest atomization with the least amount of air, making it incredibly efficient and resulting in a high-gloss, smooth finish every time. The utilization rate is excellent, making your expensive paint last longer.
Best Value (Complete Kit for Setup): InoKraft D1 LVLP Air Spray Gun Premium Kit
The inclusion of the pressure regulator and water separator means this kit provides everything a new user needs to start spraying immediately, offering professional-grade results without the typical setup hassle or hidden costs.
Best for Beginners (Versatility & Ease of Use): TCP Global HVLP Spray Gun Kit
I recommend this kit to new painters because it offers three essential tips and a dedicated detail gun, allowing beginners to learn the correct tip size for each material (primer, base, clear) without significant financial commitment.
- Key Takeaways from My Testing:
- LVLP technology is superior for clear coats and base coats due to reduced overspray and lower CFM requirements.
- For heavy primers, stick with HVLP guns utilizing 1.7mm or 2.0mm tips.
- Kits that include disposable cups (like the AEROPRO R500 w/ Cups) significantly reduce cleanup time and solvent usage.
- A true micrometer air regulator is essential for consistent results, regardless of the gun’s quality.
Your Best Automotive Paint Sprayer Questions Answered
What Is the Best Automotive Paint Sprayer for Clear Coats?
From my testing, the best automotive paint sprayer for achieving a glass-smooth clear coat is almost always an LVLP model, such as the AEROPRO R500. LVLP operates at lower air pressures, which creates a softer, finer mist resulting in minimal texture (orange peel) and excellent material transfer efficiency for expensive clear coat materials. I find the 1.3mm tip size is the sweet spot for most modern clear coats.
What Is the Difference Between HVLP and LVLP Technology?
HVLP (High Volume, Low Pressure) uses a high volume of air delivered through the cap to atomize the paint at 10 PSI or less, requiring a compressor that can deliver high CFM (often 12+ CFM). LVLP (Low Volume, Low Pressure) uses a much lower volume of air (typically 3–6 CFM) and usually operates at slightly higher input pressure (25–35 PSI at the inlet) but still results in low-pressure output, making it highly efficient for those with smaller compressors.
How Often Should I Clean My Best Automotive Paint Sprayer?
You must clean your paint sprayer immediately after every single use—no exceptions. I recommend running the appropriate solvent (lacquer thinner for solvent-based paints, water/cleaner for waterborne paints) through the gun until the stream runs perfectly clear. Failure to clean promptly results in hardened paint deposits that dramatically impact atomization and can permanently damage the needle and nozzle set.
What Size Compressor Do I Need for Automotive Painting?
For serious automotive painting, I recommend a compressor that can deliver at least 5–6 CFM (cubic feet per minute) at 40 PSI minimum. If you plan to use standard, high-performance HVLP guns, you should aim for 12–15 CFM at 90 PSI to allow continuous operation. Choosing an efficient LVLP gun, like the AEROPRO R500, can allow you to use a much smaller 3–5 HP, 20–30 gallon tank compressor effectively.
Do I Need a Regulator and Water Trap for My Spray Gun?
Absolutely, yes. A regulator is non-negotiable as it allows you to precisely dial in the air pressure required for optimal atomization, which is critical for consistent finishes. Similarly, an oil-water separator (water trap) is essential because moisture from the compressor tank entering the airline will contaminate the paint, causing fish eyes and bubbling in the finish. Always install both directly before the air inlet on your spray gun.
