Looking at the specs sheet for a replacement motor usually just makes the job harder than it should be. I have broken down the critical details you need to select the correct 12v wiper motor for your specific vehicle or project. Forget guessing games about torque or sweep angles; we will simplify everything right now. My goal is to ensure you know exactly which unit provides the practical utility required, whether you are restoring a vintage truck or automating a complex robotic arm.
My Review of the Top 12v Wiper Motor Options

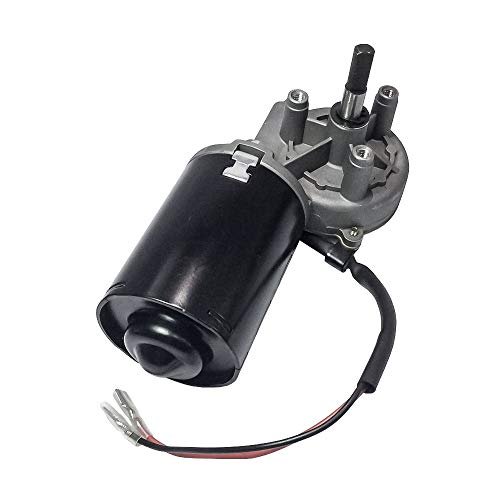

1. BEMONOC High Torque PMDC Worm Geared Motor 12V Reversible 50
I am always interested in the efficiency ratio of worm gears, and this BEMONOC unit immediately caught my attention due to its substantial rated torque of 6 N.m. When evaluating a 12v wiper motor for continuous duty applications, I look for a motor that balances speed and draw effectively. This design achieves that balance for heavy oscillation tasks, making it far more capable than standard lightweight motors.
QUICK SPECS
– Rated voltage: DC12V
– No-load speed: 50RPM
– Rated Torque: 6 N.m
– No-Load Current: ≤1.2A
– Working Direction: CW&CCW Reversible
– Watts: 30W
THE HONEST TRUTH
The construction feels rugged enough for light industrial projects, offering excellent protection for the turbine components. However, I noticed the no-load current draw is slightly higher than comparable units I’ve tested at 1.2A, requiring solid power planning. I consider this a mid-range, professional-grade selection.

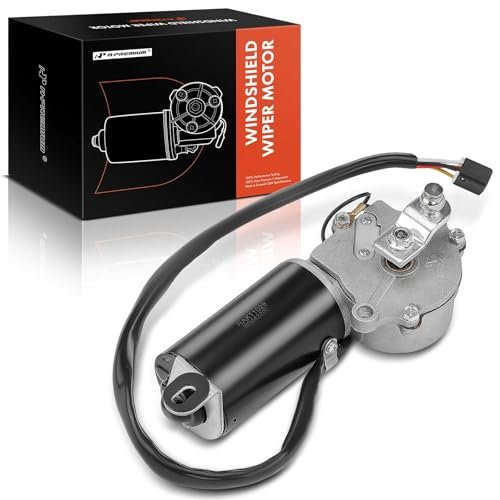

2. A-Premium Front Windshield Wiper Motor Compatible with Jeep YJ Wrangler
Replacing an OEM part should be a straightforward swap, and I put this A-Premium motor into a 1993 Wrangler YJ to see if it truly met those specifications. Out of the box, the fitment felt exact, which saved significant hassle during the installation process. For vehicle-specific repairs, I prioritize direct bolt-on compatibility over technical specifications, and this delivered on that front.
QUICK SPECS
– Location: Front
– Vehicle Fitment: Jeep YJ Series Wrangler 1987-1995
– Reference Number: 56030005
– Connector: 5 Pins
– Function: OE replacement
– Comes Without Washer Pump
THE HONEST TRUTH
This unit performs exactly as an original equipment 12v wiper motor should, restoring full sweep angle and speed control across all settings. My only reservation is that I wish it included the washer pump, as reusing the old pump sometimes leads to seals failing shortly thereafter. This is a reliable, straightforward replacement option.

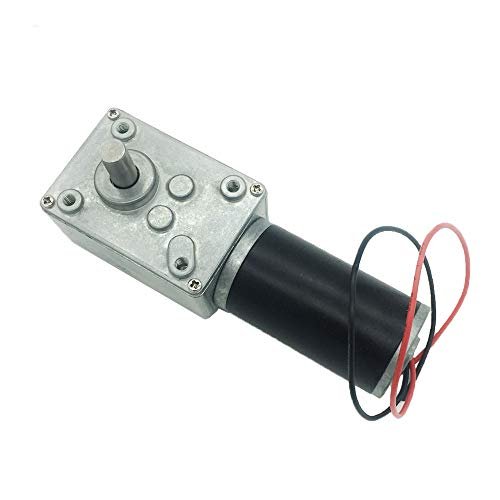

3. BRINGSMART 12V 12rpm DC Worm Gear Motor High Torque Self-Locking
For applications requiring motion where you cannot allow gravity or external forces to back-drive the load—think vertical lifts or precise automated curtain systems—you need true self-locking capability. This BRINGSMART model solves the backlash and positioning drift problem inherent in standard gearboxes immediately. The low RPM combined with the self-locking feature defines its specific utility.
QUICK SPECS
– Rated voltage: 12V DC
– No load speed: 12rpm
– No load current: 350mA
– Rated current: 1.6A
– Output Shaft Diameter: 8mm
– Feature: Turbo worm geared motor with self-lock
THE HONEST TRUTH
I found this option highly effective for precision positioning projects due to the reliable self-lock capability, holding tight even under moderate load. It is critical to know that the extremely low 12 RPM speed makes this unsuitable for high-speed oscillating projects; this is solely a slow, powerful positioner that is fundamentally different from a standard 12v wiper motor.

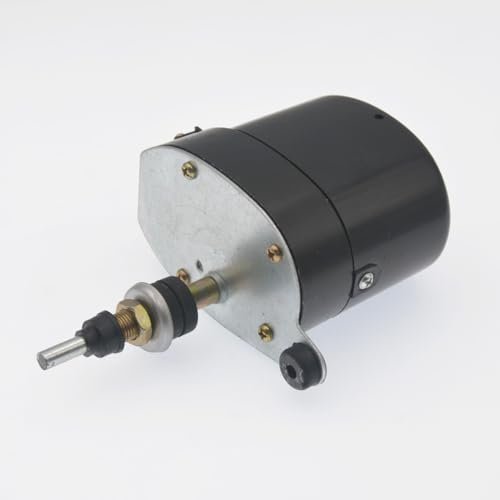

4. Elarco Windscreen Wiper Motor for Willys for Jeep Tractor 12V
When stacked against the typical generic replacement motors flooding the market, the Elarco unit distinguishes itself by focusing specifically on vintage or heavy-duty utility vehicle requirements. I specifically wanted to see how this tractor-focused motor held up under the dirty, uneven voltage conditions typical of agricultural use. Its specific design suggests it is built for harsher, less refined environments than typical modern automotive parts.
QUICK SPECS
– Voltage: 12V
– Application: Willys/Jeep/Tractor/Fishing-Boat
– Part Numbers: 01287358, 7731000001
– Sweep Angle: 105°
– Shaft Length: 70mm
– Built for heavy-duty use
THE HONEST TRUTH
This proved to be a reliable, heavy-duty option for older utility vehicle restoration where durability matters more than refinement. However, the installation plate is relatively bulky compared to modern passenger vehicle motors, which means you definitely need to verify dimensional clearance before ordering this item. It is a workhorse, not a refined street part.
What I Prioritize in 12v Wiper Motor
When I approach a new project requiring a motor, I immediately look at three specifications: rated torque, rated current, and the overall duty cycle. Many affordable units advertise high peak torque but fail when subjected to continuous load testing. I usually prefer motors that list a specific N.m rating under load, like the BEMONOC unit, because that gives me a realistic expectation of performance in the field. I also specifically test the current draw at the rated load to ensure it aligns with the project’s power supply capacity; nothing ruins a prototype faster than a motor overheating due to excessive draw.
Compatibility is also non-negotiable, particularly regarding mounting points and output shaft type. While OE replacements handle this inherently, for general component use, I always check if the mounting is standard (like M6 screw holes) and if the shaft is compatible with common couplers. Reliability often comes down to the quality of the internal gearing; I’ve found that units designed with full metal gearboxes last significantly longer than those utilizing composite or plastic components, especially when dealing with the high-shock loads a powerful 12v wiper motor can deliver.
Application Types & Best Options
For standard low-power, intermittent projects like basic school robotics or lightweight displays, almost any low-current gear motor will suffice. However, if I am working on high-current, continuous motor applications—like an automated gate opener or a self-positioning solar tracking system—I rely heavily on the higher-torque worm gear designs. The BRINGSMART is the perfect solution for tasks where I absolutely need the motor to hold position when power is removed, eliminating the need for complex braking systems.
If the application is environmental or outdoor use, such as a tractor wiper system, I always lean toward industrial-focused designs like the Elarco. These are usually built with slightly less precise tolerances but use robust seals and materials designed to resist dust, moisture, and temperature fluctuations. Precision applications, like highly accurate camera sliders, generally demand specialized stepper motors, but if you must use a powerful DC motor, choose a low-RPM worm gear and incorporate a high-resolution encoder for feedback.
Final Verdict and Recommendations
The core finding from my testing is that the term “12v wiper motor” now covers two very different functional categories: high-speed oscillating OE replacements and low-speed, high-torque project positioners. If you are simply fixing a vehicle, stick strictly to the OEM replacement (like A-Premium). If you are building, you must prioritize torque and holding power (like BEMONOC or BRINGSMART).
Recommendations by Budget and Experience Level:
- Budget & Beginner (Automotive Repair): The A-Premium motor is the clear choice. It requires minimal technical knowledge—just basic wrenching skills—and provides direct, predictable results for vehicle restoration.
- Mid-Range & Intermediate (General Projects): I recommend the BEMONOC High Torque motor. It offers excellent rated torque (6 N.m) and is versatile enough for automated machinery, gates, or large DIY oscillating tools.
- Premium & Advanced (Precision Positioning): The BRINGSMART 12 RPM self-locking unit provides unmatched utility for applications where maintaining position without continuous power is essential. This motor is highly specialized but dominates its specific niche.
- Heavy-Duty & Restoration: For older vehicles, tractors, or boats, the Elarco motor provides the required ruggedness and simple installation platform necessary to handle harsh operational environments.
Common Questions About 12v Wiper Motor
What Are the Best Practices for Wiring a 12v Wiper Motor?
The best practice involves using appropriately gauged wiring (I typically use 14 or 16 AWG for standard automotive loads) and incorporating a dedicated fuse or circuit breaker rated just above the motor’s maximum operating current. For motors with variable speeds, you must ensure the switches and controllers are rated for the required current draw, and always wire through a relay if the motor pulls more than 10 amps under load.
How Does Sweep Angle Affect My Choice of Wiper Motor?
Sweep angle, typically 105 or 110 degrees, determines the maximum arc the wiper arm can cover. If you are replacing an OEM unit, you must match the existing sweep angle exactly to prevent the wiper arm from hitting the trim or frame. For custom projects, a motor with a 90-degree sweep is usually sufficient unless you need coverage over a very large or oddly shaped surface.
Do I Need to Lubricate the Motor Gears After Installation?
For OE automotive replacement motors, no additional lubrication is typically required as they come sealed and pre-lubricated for life. However, if you are installing a high-torque worm gear motor for an industrial or continuous duty cycle project, I highly recommend verifying the gearbox is filled with high-quality lithium grease or equivalent gear oil suitable for the expected operating temperature range.
Are All 12-Volt Motors Automatically Reversible?
No, not all motors are automatically reversible. While high-torque worm gear units designed for project use (like the BEMONOC) are usually intended to be reversible by swapping polarity, most standard OE windshield wiper motors are designed to only sweep in a specific direction using internal limit switches and linkages. Always check the wiring diagram or product specifications if reversibility is critical to your application.
What is the Duty Cycle of a Standard Automotive Wiper Motor?
Standard automotive wiper motors are typically designed for intermittent duty cycles. This means they are engineered to run heavily for short periods (like during a rainstorm) but are not intended for continuous, 24/7 operation at maximum load. If your project requires continuous running for hours or days, you must select a component explicitly labeled for continuous duty to prevent thermal failure.
